TimeWork Kilns
Model NO. J-200

For quick clean burn-out or slow controlled rises in temperature, these kilns are excellent for single pieces or large scale production work, and can be used for lampworking, copper enameling, plastics and heat treating, as well as for lost wax casting. All units are constructed of heavy gauge, galvanized sheet metal in hammertone grey finish. The easily controlled temperature advances from 0oF to 500oF within 15 minutes, and from 500oF to 1100oF within 45 minutes. Maximum operating temperature is 2000oF. Kilns operate on 115V, 13.5 amps, 1600 watts. Also available: 220V, 8 amps, at 1800 watts

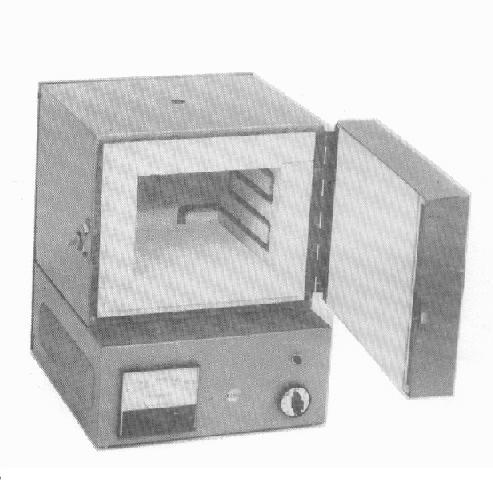

Photo of J-100 Kiln

Heavy Duty Element
Top Venting for Moisture and Wax Escape
Side Opening Door
Instruments Mounted on Front Panel for
    Easy Viewing
Stepless Control




Description:

Model NO. J-200
Outside Dimensions: 17 1/8 x 17 1/8 x 19 7/8.
Chamber Dimensions: 12 x 12 x 8 1/2.
Reasonablely priced at $567.50, FREIGHT: C.O.D.
Fedex shipping Rates         |         UPS shipping Rates
Prices are subject to change without notice.
CA. residents add 7.75% Tax.

OPERATIONAL INSTRUCTIONS for JT-201 & JT-202 Series Kiln.
Replacements Parts for JT-201 & JT-202 Series Kiln.

MODEL
NO.
DESCRIPTION
Outside Dimension: 13 1/2" wide, 14" deep, 18" high.
Chamber Dimension: 8 1/2" wide, 9" deep, 6 1/4" high.
Same Dimension as the J-100 Model, but with solid state, automatic control in lieu of the step-less control.
Outside Dimension: 17 1/8" wide, 17 1/8" deep, 19 7/8" high.
Chamber Dimension: 12" wide, 12" deep, 8 1/2" high.
Same Dimension as the J-200 Model, but with solid state, automatic control in lieu of the step-less control.
Same as the J-201 Model, but with Front Loading;
Cantilever Door that lifts upwards
. (Developed for the Lampworkers)

All units are constructed of heavy gauge, galvanized sheet metal in hammertone grey finish.
