TimeWork Kilns
Model NO. JT-201

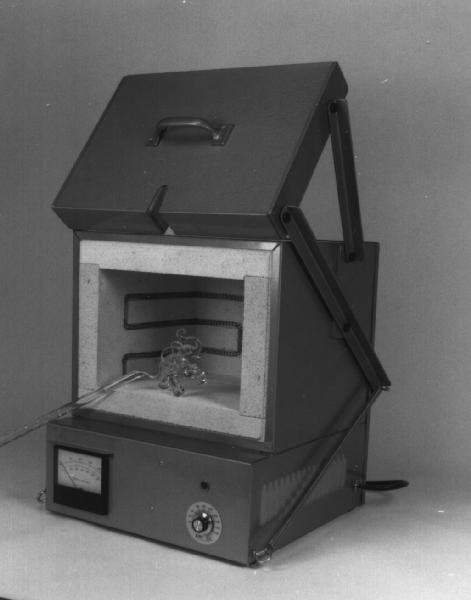

Photo of JT201 Kiln

   Safe and Easy

   Stable Temperature Control

   Heavy Duty Construction





Description:

Model NO. JT-201
Outside Dimensions: 17 1/8 X 17 1/8 X 19 7/8
Chamber Dimensions: 12 X 12 X 8 1/2
Reasonablely priced at $945.00, FREIGHT: C.O.D.
ALSO AVABILE: Fuji PXV-3 Controller
8 segment Ramp/Soak programming
with Autotune and fuzzy logic controller
Call for more information: (714) 520-0121
Fedex shipping Rates         |         UPS shipping Rates
Prices are subject to change without notice.
CA. residents add 7.75% Tax.


This kiln was developed for the lampworker. They are excellent for single pieces or large scale production work. For quick and easy access to your work, the cantilever door lifts upwards and automatically reseats every time it is closed for a tight fit to minimize heat loss.

Set the control dial to desired setting. The automatic control will maintain a set temperature. Temperature advances from 0 F to 500 F within 6 minutes, and from 500 F to 1050 F within 29 minutes. Maximum operating temperature is 2000 F. Kilns operate on 115V, 14 amps, 1680 watts and the 220V 8 amps, at 840 watts.

JT-201 has a slot in the door to accommodate a holding rod up to 5/8" for large work, reworking and repairs. Ideal for pre-heating large rods. All units are constructed of heavy gauge, galvanized sheet metal in hammertone grey finish.
OPERATIONAL INSTRUCTIONS for JT-201 & JT-202 Series Kiln.
Replacements Parts for JT-201 & JT-202 Series Kiln.

MODEL
NO.
DESCRIPTION
Outside Dimension: 13 1/2" wide, 14" deep, 18" high.
Chamber Dimension: 8 1/2" wide, 9" deep, 6 1/4" high.
Same Dimension as the J-100 Model, but with solid state, automatic control in lieu of the step-less control.
Outside Dimension: 17 1/8" wide, 17 1/8" deep, 19 7/8" high.
Chamber Dimension: 12" wide, 12" deep, 8 1/2" high.
Same Dimension as the J-200 Model, but with solid state, automatic control in lieu of the step-less control.
Same as the J-201 Model, but with Front Loading;
Cantilever Door that lifts upwards
. (Developed for the Lampworkers)
